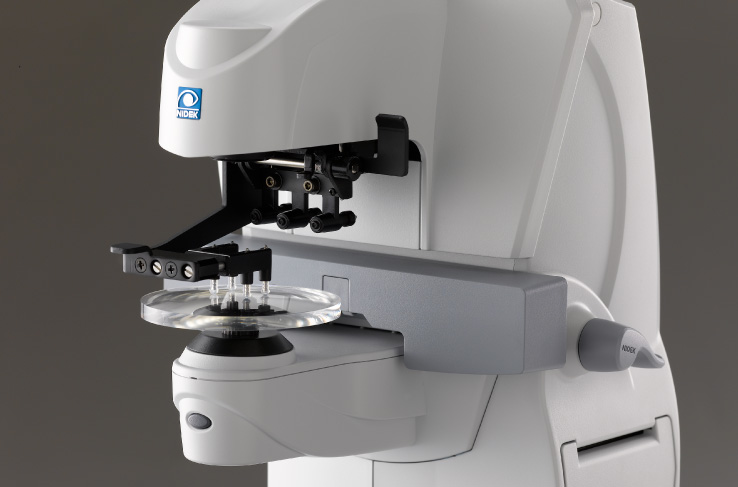

Auto Lensmeter
LM-1800PD/1800P
Brand: Nidek – Japan
Hartmann sensor with 108 multiple measurement points
Advanced simultaneous measurement of 108 multiple points within the nosepiece provide easier and faster measurements with greater accuracy and reliability provides easier and faster measurements with greater accuracy and reliability.
Green measurement light
Green light close to the ISO standard gives more precise measurement values without Abbe value compensation.
Automatic lens type detection
Placing the lens on the nosepiece activates the auto lens detection to automatically determine the lens type and automatically switches its measuring mode accordingly.
A new lens table expanding measurement range
The new mechanism of the lens table allows the nosepiece to partially enter into the lens table. The mechanical change enables easy measurement of near portion of progressive lens without taking the lens table off even though the near portion is located on the edge of the frame.

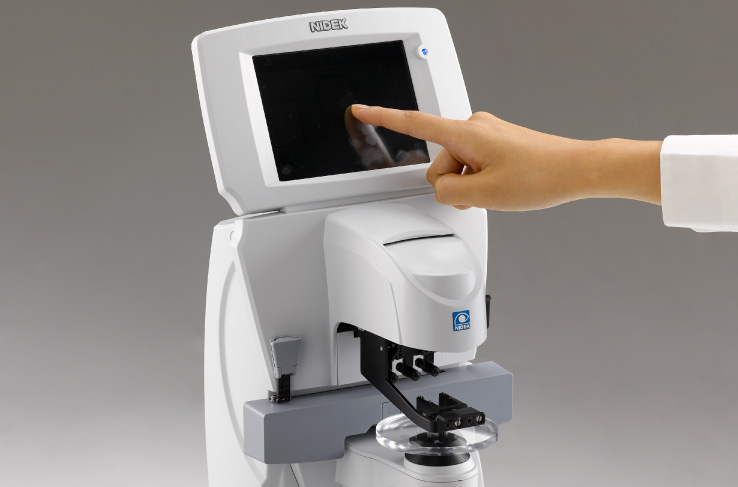

Full graphic LCD with 5.7-inch touch color panel
The adoption of the touch panel achieves ideal layout display superior in operability, visibility and external appearance. Moreover, you can choose a favorite color from a lot of choices.

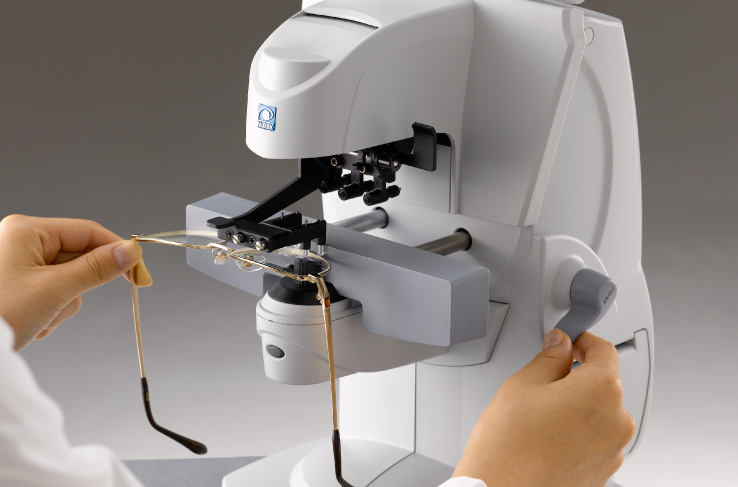

Easy PD measurement (only for the LM-1800PD)
Papillary distance can be measured easily. The LM-1800PD offers automatic Right / Left detection with the special PD slider, which also helps the operator easily hold glasses while measuring.
User-Friendly tiltable LCD
The tiltable (30º) full-graphic LCD monitor provides easier operation for both standing and sitting operators.
Prism layout function
Entering the prism prescription value in advance allows easy blocking by just following the target shown on the screen for blocking lenses at the prism prescription position.
Improved marking dots
NIDEK’s newly developed marking ink provides clear dots even on lenses with water repellent coating / finish.
UV transmittance measurement
A new UV measurement with the visuallyenhanced display shows the UV transmittance in the range of 0 to 100% by 1 or 5% increments.
The comparison of the two lenses can be easily displayed.
Built-in Eye Care card system
The LM-1800 series incorporates the card slot for Eye Care card system, which provides quick and easy wireless data tracer, eliminating paper print outs from the auto refractometers and the auto optometry systems, which are leading products that also carry built-in Eye Care card system.
High-Speed line printer with auto cutter
The LM-1800 series feature a high-speed printer with fast and easy to read printouts. Measurement data is simply laid out and is useful for explanation to customers.
Interface enhancement
In addition to the conventional three interfaces, LAN interface is preloaded in the LM-1800PD/1800P. It is accessible to the auto refractometer, the auto optometry system and a PC directly.
